Notes

Show imports Hide imports

import os

import dimcat as dc
import ms3
import pandas as pd
import plotly.express as px
from dimcat import filters, plotting

import utils

pd.set_option("display.max_rows", 1000)
pd.set_option("display.max_columns", 500)

Show source Hide source

RESULTS_PATH = os.path.abspath(os.path.join(utils.OUTPUT_FOLDER, "notes_stats"))
os.makedirs(RESULTS_PATH, exist_ok=True)


def make_output_path(
    filename: str,
    extension=None,
    path=RESULTS_PATH,
) -> str:
    return utils.make_output_path(filename=filename, extension=extension, path=path)


def save_figure_as(
    fig, filename, formats=("png", "pdf"), directory=RESULTS_PATH, **kwargs
):
    if formats is not None:
        for fmt in formats:
            plotting.write_image(fig, filename, directory, format=fmt, **kwargs)
    else:
        plotting.write_image(fig, filename, directory, **kwargs)

Loading data

Show source Hide source

D = utils.get_dataset("schumann_kinderszenen", corpus_release="v2.3")
package = D.inputs.get_package()
package_info = package._package.custom
git_tag = package_info.get("git_tag")
utils.print_heading("Data and software versions")
print("Robert Schumann – Kinderszenen version v2.3")
print(f"Datapackage '{package.package_name}' @ {git_tag}")
print(f"dimcat version {dc.__version__}\n")
D

Data and software versions
--------------------------

Robert Schumann – Kinderszenen version v2.3
Datapackage 'schumann_kinderszenen' @ v2.3
dimcat version 3.4.0

Dataset
=======
{'inputs': {'basepath': None,
            'packages': {'schumann_kinderszenen': ["'schumann_kinderszenen.measures' "
                                                   '(MuseScoreFacetName.MuseScoreMeasures)',
                                                   "'schumann_kinderszenen.notes' (MuseScoreFacetName.MuseScoreNotes)",
                                                   "'schumann_kinderszenen.expanded' "
                                                   '(MuseScoreFacetName.MuseScoreHarmonies)',
                                                   "'schumann_kinderszenen.chords' "
                                                   '(MuseScoreFacetName.MuseScoreChords)',
                                                   "'schumann_kinderszenen.metadata' (FeatureName.Metadata)"]}},
 'outputs': {'basepath': None, 'packages': {}},
 'pipeline': []}

Metadata

filtered_D = filters.HasHarmonyLabelsFilter(keep_values=[True]).process(D)

all_metadata = filtered_D.get_metadata()
all_metadata.reset_index(level=1).groupby(level=0).nth(0).iloc[:, :20]

	piece	TimeSig	KeySig	last_mc	last_mn	length_qb	last_mc_unfolded	last_mn_unfolded	length_qb_unfolded	volta_mcs	all_notes_qb	n_onsets	n_onset_positions	guitar_chord_count	form_label_count	label_count	annotated_key	harmony_version	annotators	reviewers
corpus
schumann_kinderszenen	n01	{1: '2/4'}	{1: 1}	22	22	44.0	44	44	88.0	()	134.33	241	141	0	0	44	G	2.3.0	Tal Soker (2.1.1), John Heilig (2.3.0)	AN, JHei, JH

chronological_order = utils.chronological_corpus_order(all_metadata)
corpus_colors = dict(zip(chronological_order, utils.CORPUS_COLOR_SCALE))

notes_feature = filtered_D.get_feature("notes")
all_notes = notes_feature.df
print(f"{len(all_notes.index)} notes over {len(all_notes.groupby(level=[0,1]))} files.")
all_notes.head()

5276 notes over 13 files.

			mc	mn	quarterbeats	quarterbeats_all_endings	duration_qb	duration	mc_onset	mn_onset	timesig	staff	voice	volta	chord_id	gracenote	midi	name	nominal_duration	octave	scalar	tied	tpc_name	tpc
corpus	piece	i
schumann_kinderszenen	n01	0	1	1	0	0	0.500000	1/8	0	0	2/4	2	2	<NA>	8	<NA>	55	G3	1/8	3	1	<NA>	G	1
		1	1	1	0	0	0.333333	1/12	0	0	2/4	2	1	<NA>	2	<NA>	59	B3	1/8	3	2/3	<NA>	B	5
		2	1	1	0	0	1.000000	1/4	0	0	2/4	1	1	<NA>	0	<NA>	71	B4	1/4	4	1	<NA>	B	5
		3	1	1	1/3	1/3	0.333333	1/12	1/12	1/12	2/4	2	1	<NA>	3	<NA>	62	D4	1/8	4	2/3	<NA>	D	2
		4	1	1	2/3	2/3	0.333333	1/12	1/6	1/6	2/4	2	1	<NA>	4	<NA>	67	G4	1/8	4	2/3	<NA>	G	1

def weight_notes(nl, group_col="midi", precise=True):
    summed_durations = nl.groupby(group_col).duration_qb.sum()
    shortest_duration = summed_durations[summed_durations > 0].min()
    summed_durations /= shortest_duration  # normalize such that the shortest duration results in 1 occurrence
    if not precise:
        # This simple trick reduces compute time but also precision:
        # The rationale is to have the smallest value be slightly larger than 0.5 because
        # if it was exactly 0.5 it would be rounded down by repeat_notes_according_to_weights()
        summed_durations /= 1.9999999
    return repeat_notes_according_to_weights(summed_durations)


def repeat_notes_according_to_weights(weights):
    try:
        counts = weights.round().astype(int)
    except Exception:
        return pd.Series(dtype=int)
    counts_reflecting_weights = []
    for pitch, count in counts.items():
        counts_reflecting_weights.extend([pitch] * count)
    return pd.Series(counts_reflecting_weights)

Ambitus

corpus_names = {
    corp: utils.get_corpus_display_name(corp) for corp in chronological_order
}
chronological_corpus_names = list(corpus_names.values())
corpus_name_colors = {
    corpus_names[corp]: color for corp, color in corpus_colors.items()
}
all_notes["corpus_name"] = all_notes.index.get_level_values(0).map(corpus_names)

grouped_notes = all_notes.groupby("corpus_name")
weighted_midi = pd.concat(
    [weight_notes(nl, "midi", precise=False) for _, nl in grouped_notes],
    keys=grouped_notes.groups.keys(),
).reset_index(level=0)
weighted_midi.columns = ["dataset", "midi"]
weighted_midi

	dataset	midi
0	R Schumann Kinderszenen	25
1	R Schumann Kinderszenen	25
2	R Schumann Kinderszenen	26
3	R Schumann Kinderszenen	26
4	R Schumann Kinderszenen	26
...	...	...
5439	R Schumann Kinderszenen	85
5440	R Schumann Kinderszenen	86
5441	R Schumann Kinderszenen	86
5442	R Schumann Kinderszenen	88
5443	R Schumann Kinderszenen	91

5444 rows × 2 columns

# fig = px.violin(weighted_midi,
#                 x='dataset',
#                 y='midi',
#                 color='dataset',
#                 title="Corpus-wise distribution over registers (ambitus)",
#                 box=True,
#                 labels=dict(
#                     dataset='',
#                     midi='distribution of pitches by duration'
#                 ),
#                 category_orders=dict(dataset=chronological_corpus_names),
#                 color_discrete_map=corpus_name_colors,
#                 width=1000, height=600,
#                )
# fig.update_traces(spanmode='hard') # do not extend beyond outliers
# fig.update_layout(**utils.STD_LAYOUT,
#                  showlegend=False)
# fig.update_yaxes(
#     tickmode= 'array',
#     tickvals= [12, 24, 36, 48, 60, 72, 84, 96],
#     ticktext = ["C0", "C1", "C2", "C3", "C4", "C5", "C6", "C7"],
# )
# fig.update_xaxes(tickangle=45)
# save_figure_as(fig, "ambitus_corpuswise_violins")
# fig.show()

Tonal Pitch Classes (TPC)

weighted_tpc = pd.concat(
    [weight_notes(nl, "tpc") for _, nl in grouped_notes],
    keys=grouped_notes.groups.keys(),
).reset_index(level=0)
weighted_tpc.columns = ["dataset", "tpc"]
weighted_tpc

	dataset	tpc
0	R Schumann Kinderszenen	-5
1	R Schumann Kinderszenen	-4
2	R Schumann Kinderszenen	-4
3	R Schumann Kinderszenen	-4
4	R Schumann Kinderszenen	-4
...	...	...
3619	R Schumann Kinderszenen	13
3620	R Schumann Kinderszenen	13
3621	R Schumann Kinderszenen	13
3622	R Schumann Kinderszenen	14
3623	R Schumann Kinderszenen	14

3624 rows × 2 columns

As violin plot

# fig = px.violin(weighted_tpc,
#                 x='dataset',
#                 y='tpc',
#                 color='dataset',
#                 title="Corpus-wise distribution over line of fifths (tonal pitch classes)",
#                 box=True,
#                 labels=dict(
#                     dataset='',
#                     tpc='distribution of tonal pitch classes by duration'
#                 ),
#                 category_orders=dict(dataset=chronological_corpus_names),
#                 color_discrete_map=corpus_name_colors,
#                 width=1000,
#                 height=600,
#                )
# fig.update_traces(spanmode='hard') # do not extend beyond outliers
# fig.update_layout(**utils.STD_LAYOUT,
#                  showlegend=False)
# fig.update_yaxes(
#     tickmode= 'array',
#     tickvals= [-12, -9, -6, -3, 0, 3, 6, 9, 12, 15, 18],
#     ticktext = ["Dbb", "Bbb", "Gb", "Eb", "C", "A", "F#", "D#", "B#", "G##", "E##"],
#     zerolinecolor='grey',
#     zeroline=True
# )
# fig.update_xaxes(tickangle=45)
# save_figure_as(fig, "pitch_class_distributions_corpuswise_violins")
# fig.show()

(all_notes)

			mc	mn	quarterbeats	quarterbeats_all_endings	duration_qb	duration	mc_onset	mn_onset	timesig	staff	voice	volta	chord_id	gracenote	midi	name	nominal_duration	octave	scalar	tied	tpc_name	tpc	corpus_name
corpus	piece	i
schumann_kinderszenen	n01	0	1	1	0	0	0.500000	1/8	0	0	2/4	2	2	<NA>	8	<NA>	55	G3	1/8	3	1	<NA>	G	1	R Schumann Kinderszenen
		1	1	1	0	0	0.333333	1/12	0	0	2/4	2	1	<NA>	2	<NA>	59	B3	1/8	3	2/3	<NA>	B	5	R Schumann Kinderszenen
		2	1	1	0	0	1.000000	1/4	0	0	2/4	1	1	<NA>	0	<NA>	71	B4	1/4	4	1	<NA>	B	5	R Schumann Kinderszenen
		3	1	1	1/3	1/3	0.333333	1/12	1/12	1/12	2/4	2	1	<NA>	3	<NA>	62	D4	1/8	4	2/3	<NA>	D	2	R Schumann Kinderszenen
		4	1	1	2/3	2/3	0.333333	1/12	1/6	1/6	2/4	2	1	<NA>	4	<NA>	67	G4	1/8	4	2/3	<NA>	G	1	R Schumann Kinderszenen
	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
	n13	275	24	24	443/4	443/4	1.000000	1/4	3/4	3/4	4/4	1	1	<NA>	201	<NA>	62	D4	1/4	4	1	-1	D	2	R Schumann Kinderszenen
		276	25	25	447/4	447/4	4.000000	1	0	0	4/4	2	1	<NA>	205	<NA>	31	G1	1	1	1	<NA>	G	1	R Schumann Kinderszenen
		277	25	25	447/4	447/4	4.000000	1	0	0	4/4	2	1	<NA>	205	<NA>	47	B2	1	2	1	<NA>	B	5	R Schumann Kinderszenen
		278	25	25	447/4	447/4	4.000000	1	0	0	4/4	1	1	<NA>	204	<NA>	55	G3	1	3	1	<NA>	G	1	R Schumann Kinderszenen
		279	25	25	447/4	447/4	4.000000	1	0	0	4/4	1	1	<NA>	204	<NA>	62	D4	1	4	1	<NA>	D	2	R Schumann Kinderszenen

5276 rows × 23 columns

width = 1400
height = 800

weighted_pitch_values = pd.concat(
    [
        weighted_midi.rename(columns={"midi": "value"}),
        weighted_tpc.rename(columns={"tpc": "value"}),
    ],
    keys=["MIDI pitch", "Tonal pitch class"],
    names=["distribution"],
).reset_index(level=[0, 1])

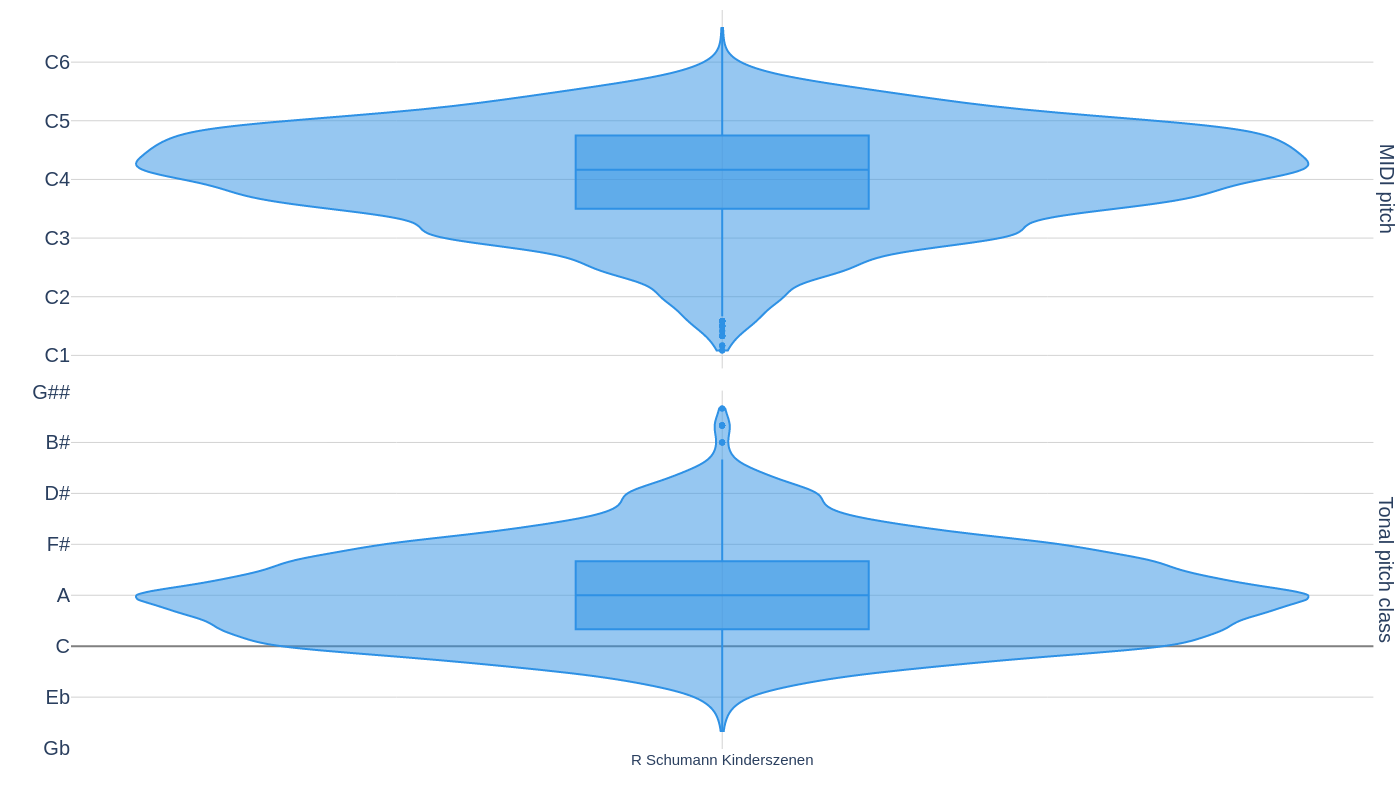

fig = plotting.make_violin_plot(
    weighted_pitch_values,
    x_col="dataset",
    y_col="value",
    color="dataset",
    facet_row="distribution",
    box=True,
    labels=dict(dataset="", tpc="distribution of tonal pitch classes by duration"),
    category_orders=dict(dataset=chronological_corpus_names),
    # color_discrete_map=corpus_name_colors,
    color_discrete_sequence=px.colors.qualitative.Dark24,
    traces_settings=dict(
        spanmode="hard",
        width=1,
        # scalemode='width'
    ),
    layout=dict(
        showlegend=False,
        margin=dict(
            t=0,
            b=0,
            l=0,
            r=0,
        ),
    ),
    x_axis=dict(
        # tickangle=45,
        tickfont_size=15
    ),
    y_axis=dict(
        tickmode="array",
        tickvals=[-12, -9, -6, -3, 0, 3, 6, 9, 12, 15, 24, 36, 48, 60, 72, 84, 96],
        ticktext=[
            "Dbb",
            "Bbb",
            "Gb",
            "Eb",
            "C",
            "A",
            "F#",
            "D#",
            "B#",
            "G##",
            "C1",
            "C2",
            "C3",
            "C4",
            "C5",
            "C6",
            "C7",
        ],
        zerolinecolor="grey",
        zeroline=True,
    ),
    width=width,
    height=height,
)
utils.realign_subplot_axes(fig, y_axes=dict(title_text=""))
save_figure_as(fig, "notes_violin", width=width, height=height)
fig

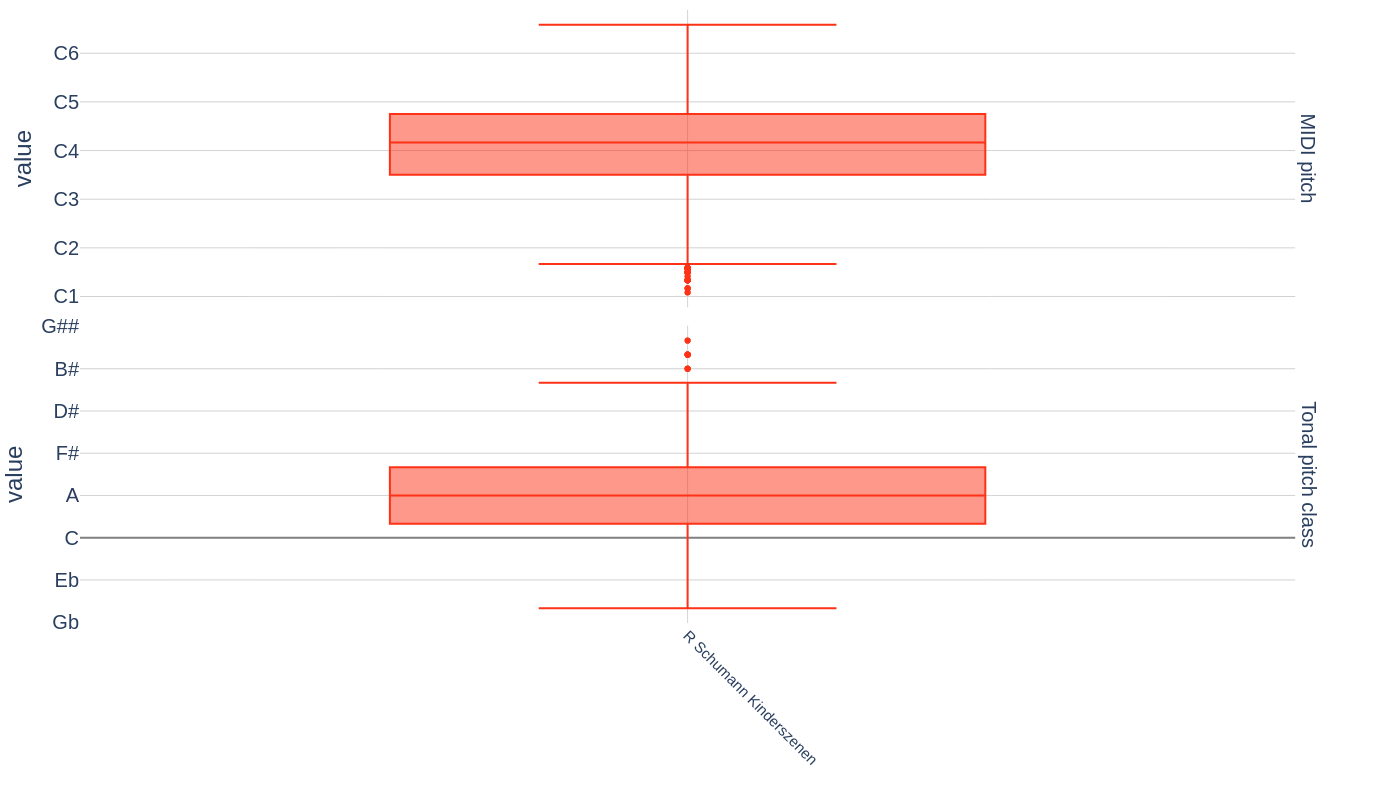

fig = plotting.make_box_plot(
    weighted_pitch_values,
    x_col="dataset",
    y_col="value",
    color="dataset",
    facet_row="distribution",
    # box=True,
    labels=dict(dataset="", tpc="distribution of tonal pitch classes by duration"),
    category_orders=dict(dataset=chronological_corpus_names),
    # color_discrete_map=corpus_name_colors,
    color_discrete_sequence=px.colors.qualitative.Light24,
    # traces_settings=dict(spanmode='hard'),
    layout=dict(showlegend=False, margin=dict(t=0)),
    x_axis=dict(tickangle=45, tickfont_size=15),
    y_axis=dict(
        tickmode="array",
        tickvals=[-12, -9, -6, -3, 0, 3, 6, 9, 12, 15, 24, 36, 48, 60, 72, 84, 96],
        ticktext=[
            "Dbb",
            "Bbb",
            "Gb",
            "Eb",
            "C",
            "A",
            "F#",
            "D#",
            "B#",
            "G##",
            "C1",
            "C2",
            "C3",
            "C4",
            "C5",
            "C6",
            "C7",
        ],
        zerolinecolor="grey",
        zeroline=True,
    ),
    width=width,
    height=height,
)
utils.realign_subplot_axes(fig, y_axes=True)
save_figure_as(fig, "notes_box", width=width, height=height)
fig

As bar plots

bar_data = all_notes.groupby("tpc").duration_qb.sum().reset_index()
x_values = list(range(bar_data.tpc.min(), bar_data.tpc.max() + 1))
x_names = ms3.fifths2name(x_values)
fig = px.bar(
    bar_data,
    x="tpc",
    y="duration_qb",
    labels=dict(tpc="Named pitch class", duration_qb="Duration in quarter notes"),
    color_discrete_sequence=utils.CORPUS_COLOR_SCALE,
    width=1000,
    height=300,
)
fig.update_layout(**utils.STD_LAYOUT)
fig.update_xaxes(
    zerolinecolor="grey",
    tickmode="array",
    tickvals=x_values,
    ticktext=x_names,
    dtick=1,
    ticks="outside",
    tickcolor="black",
    minor=dict(dtick=6, gridcolor="grey", showgrid=True),
)
save_figure_as(fig, "pitch_class_distribution_absolute_bars")
fig.show()

scatter_data = all_notes.groupby(["corpus_name", "tpc"]).duration_qb.sum().reset_index()
fig = px.bar(
    scatter_data,
    x="tpc",
    y="duration_qb",
    color="corpus_name",
    labels=dict(
        duration_qb="duration",
        tpc="named pitch class",
    ),
    category_orders=dict(dataset=chronological_corpus_names),
    color_discrete_map=corpus_name_colors,
    width=1000,
    height=500,
)
fig.update_layout(**utils.STD_LAYOUT)
fig.update_xaxes(
    zerolinecolor="grey",
    tickmode="array",
    tickvals=x_values,
    ticktext=x_names,
    dtick=1,
    ticks="outside",
    tickcolor="black",
    minor=dict(dtick=6, gridcolor="grey", showgrid=True),
)
save_figure_as(fig, "pitch_class_distribution_corpuswise_absolute_bars")
fig.show()

As scatter plots

fig = px.scatter(
    scatter_data,
    x="tpc",
    y="duration_qb",
    color="corpus_name",
    labels=dict(
        duration_qb="duration",
        tpc="named pitch class",
    ),
    category_orders=dict(dataset=chronological_corpus_names),
    color_discrete_map=corpus_name_colors,
    facet_col="corpus_name",
    facet_col_wrap=3,
    facet_col_spacing=0.03,
    width=1000,
    height=1000,
)
fig.update_traces(mode="lines+markers")
fig.for_each_annotation(lambda a: a.update(text=a.text.split("=")[-1]))
fig.update_layout(**utils.STD_LAYOUT, showlegend=False)
fig.update_xaxes(
    zerolinecolor="grey",
    tickmode="array",
    tickvals=[-12, -6, 0, 6, 12, 18],
    ticktext=["Dbb", "Gb", "C", "F#", "B#", "E##"],
    visible=True,
)
fig.update_yaxes(zeroline=False, matches=None, showticklabels=True)
save_figure_as(fig, "pitch_class_distribution_corpuswise_scatter")
fig.show()

no_accidental = bar_data[bar_data.tpc.between(-1, 5)].duration_qb.sum()
with_accidental = bar_data[~bar_data.tpc.between(-1, 5)].duration_qb.sum()

entire = no_accidental + with_accidental
(
    f"Fraction of note duration without accidental of the entire durations: {no_accidental} / {entire} = "
    f"{no_accidental / entire}"
)

'Fraction of note duration without accidental of the entire durations: 2829.4166666666665 / 3624.6666666666665 = 0.7806005149898841'

Notes and staves

print("Distribution of notes over staves:")
utils.value_count_df(all_notes.staff)

Distribution of notes over staves:

	counts	%
staff
1	2893	54.83
2	2383	45.17
